FAW Русская двухсекционная сборка: Интеграция 14 Стратегические компоненты HVAC для точного контроля климата в Арктике

The FAW Русская двухсекционная сборка is the thermal exchange heart of the climate control system for the Самосвал FAW CA3250P66K24L1TE5Z. Situated deep within the dashboard, this central module houses both the evaporator and the heater core, effectively managing the phase changes required for cabin heating and cooling. By precisely blending air temperatures through a network of robust actuators and sensors, а FAW Русская двухсекционная сборка ensures that the operator remains comfortable and alert, providing rapid defrosting and stable cabin warmth in the extreme volatility of the Russian Arctic environment.

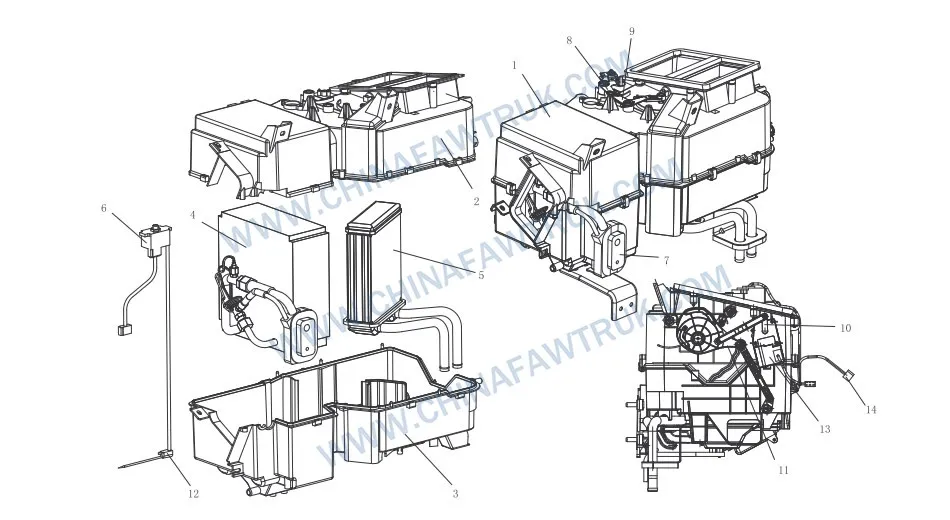

FAW Русская двухсекционная сборка

Thermal Architecture: The Core Devices

The FAW Русская двухсекционная сборка is defined by its two primary heat exchangers, which work in tandem to manipulate the cabin’s climate. The Evaporator Core Assembly (Часть №. 8107030-А65-С00) is the cooling powerhouse. In summer, it facilitates the phase change of liquid refrigerant into gas, absorbing latent heat from the cabin air. The core features high-density aluminum fins optimized for maximum surface area, ensuring efficient heat transfer even when airflow is restricted by dust or filters. This rapid cooling capability is essential for de-fogging windows in humid conditions, a key safety feature for the FAW Русская двухсекционная сборка система.

Наоборот, а Heater Core Assembly (Часть №. 8101210-А65-С00) handles the heating duties. Connected to the engine’s coolant circuit, this radiator-like component acts as a thermal battery, harvesting waste heat from the diesel engine. В Российской Арктике, where ambient temperatures can kill, the efficiency of this core is paramount. The FAW Русская двухсекционная сборка utilizes a heater core design with turbulators inside the tubes to promote turbulent flow, increasing heat transfer efficiency to the passing air. This ensures that warm air is available to the driver as soon as the engine reaches operating temperature.

The integration of these two “devices” (evaporator and heater) into a single module allows for the seamless blending of air. By directing airflow through either or both cores, the system can achieve any desired outlet temperature. This capability is managed by the central mixing chamber within the FAW Русская двухсекционная сборка. The close proximity of the hot and cold cores minimizes thermal lag, providing the driver with responsive temperature control, which is critical for maintaining alertness during long, monotonous shifts in the mining pit.

Структурная целостность: Housing Logic

Encapsulating the delicate cores are the Upper Housing – Two-piece (Часть №. 8101111-А01) и Lower Housing – Two-piece (Часть №. 8101112-А01). These shell components form the chassis of the FAW Русская двухсекционная сборка. Molded from high-grade, impact-resistant polypropylene or ABS plastic, these housings are designed to withstand significant thermal shock. As the system cycles from freezing cold to scorching heat, the material must expand and contract without warping or cracking. A cracked housing would lead to air leaks, reducing system efficiency and allowing dangerous exhaust fumes or dust to bypass the filters and enter the cabin.

The mating surfaces between the upper and lower housings of the FAW Русская двухсекционная сборка are precision-engineered to create an airtight seal. This seal is crucial for maintaining static pressure within the HVAC unit, ensuring that the blower motor’s energy is used effectively to push air through the ducts rather than leaking out behind the dashboard. Кроме того, the internal geometry of the housings is sculpted to smooth airflow, reducing turbulence and the associated “whooshing” noise that can be distracting to the driver.

The Lower Housing – Two-piece also incorporates the condensate drain pan. Как Evaporator Core Assembly removes humidity from the air, water collects in this pan. The design features a sloped floor to ensure rapid drainage, preventing stagnant water from pooling. В русскую зиму, standing water can freeze, expanding and cracking the housing or blocking the drain. Разработка FAW Русская двухсекционная сборка prioritizes effective moisture management to prevent these common failure modes, ensuring the longevity of the entire climate control system.

Kinematic Control: Actuators and Linkages

The precise direction and temperature of the airflow are governed by a complex system of mechanical linkages within the FAW Русская двухсекционная сборка. Components like the Temperature Actuator Rocker Arm Assembly (Часть №. 8101020-А65-С00) и Mode Door Rocker Arm (Часть №. 8101025-А65-С00) translate rotary motion from the electric actuators into linear movement of the internal blend doors. These arms are made from reinforced nylon to resist wear and fatigue. В сильный мороз, plastics can become brittle; однако, the material specification for these arms ensures they retain ductility, preventing them from snapping under load at -40°C.

The Central Drive Plate (Часть №. 8101051-А65-С00) acts as the synchronization hub for the various air distribution flaps. It ensures that when the driver selects “Defrost,” the floor and face vents close in perfect unison while the windshield vents open. This coordination is vital for rapid de-icing. Any slop or binding in the Central Drive Plate would result in reduced airflow to the windshield, compromising safety. The FAW Русская двухсекционная сборка utilizes low-friction cam tracks on this plate to ensure smooth, low-effort operation for the actuators.

Powering these movements are components like the Mode Actuator with Rocker Arm Assembly (Часть №. 8101010-А65-С00) и Mode Door Actuator Swing Arm (Часть №. 8101015-А65-С00). These electromechanical devices must possess sufficient torque to overcome the air pressure acting on the doors and any resistance caused by frozen seals. Надежность FAW Русская двухсекционная сборка depends on these actuators holding their position accurately, ensuring that the selected climate settings are maintained without drift, providing a consistent environment for the driver.

Sensors and Fluid Control

The intelligence of the system relies on feedback from the Evaporator Temperature Sensor (Часть №. 8107080-А65-С00). Secured by the Клип – Датчик температуры (Часть №. 8101241-А65-С00), this probe monitors the core temperature to prevent freezing. If the evaporator gets too cold, condensation will freeze into a block of ice, stopping airflow. The sensor signals the compressor to cycle off, melting the ice. In the damp conditions of a Russian spring, this freeze-protection logic is critical for maintaining the functionality of the FAW Русская двухсекционная сборка.

Fluid control is managed by the Расширение клапана сборка (Часть №. 8106010-А65-С00). This precision valve meters the flow of high-pressure liquid refrigerant into the evaporator. It must adapt dynamically to changes in engine speed and thermal load. A stuck expansion valve can lead to compressor failure (liquid slugging) or poor cooling performance. The FAW Русская двухсекционная сборка utilizes a block-type valve known for its durability and resistance to clogging, ensuring reliable refrigerant metering even in the vibrating environment of a mining truck.

Окончательно, а AC Wiring Harness Assembly (Часть №. 3724295-Б27) connects all these sensors and actuators to the vehicle’s central control unit. The harness features weather-sealed connectors to prevent corrosion from the humid environment inside the dashboard. A failure in the harness would render the entire FAW Русская двухсекционная сборка бесполезный. By using high-grade copper conductors and robust insulation, FAW ensures that the electrical signals governing climate control are transmitted without interruption, guaranteeing the system’s responsiveness.

Заключение: The Core of Cabin Survival

The FAW Русская двухсекционная сборка is more than just a heater and air conditioner; it is a sophisticated thermal management module designed for survival. By integrating the Evaporator Core Assembly и Heater Core Assembly into a robust, kinematically precise housing, FAW delivers a system that can tame the wildest temperature swings of the Arctic. Каждый компонент, из Mode Door Rocker Arm к Расширение клапана сборка, plays a strategic role in maintaining a habitable workspace.

For fleet maintenance, understanding the complexity of the FAW Русская двухсекционная сборка имеет важное значение. Replacing individual components like the Temperature Actuator Rocker Arm Assembly requires precision and genuine parts to ensure the system remains balanced. By maintaining this assembly to factory specifications, operators ensure that their drivers remain warm, the windows remain clear, and the truck remains productive, regardless of the hostile weather conditions outside.
