The Российские компоненты приборной панели FAW assembly represents the critical interface for information display and ergonomic control within the Самосвал FAW CA3250P66K24L1TE5Z. In the challenging Russian Arctic, where operator focus must remain absolute, the dashboard architecture ensures all instruments and switches are perfectly placed and rigidly secured against extreme vibration. This system integrates the main structural framework, storage units, and air ducting connections to form a robust, cold-resistant command center, making the reliability of the Российские компоненты приборной панели FAW essential for safe, extended operations.

Российские компоненты приборной панели FAW

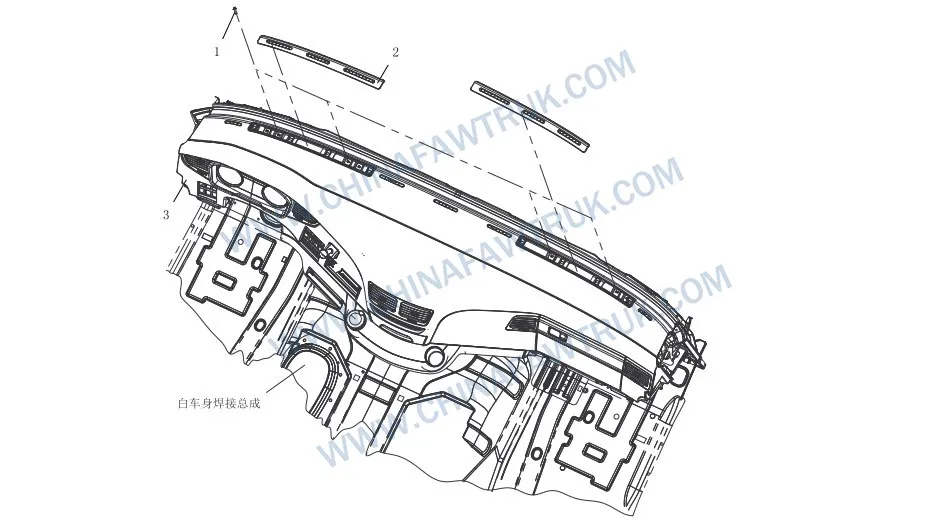

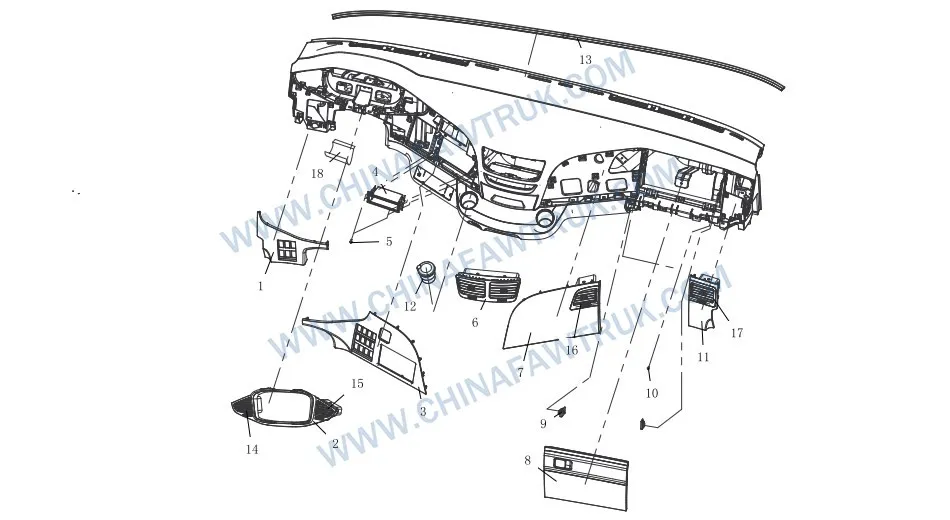

FAW Russian Dashboard Components2

FAW Russian Dashboard Components3

FAW Russian Dashboard Components4

FAW Russian Dashboard Components5

FAW Russian Dashboard Components6

FAW Russian Dashboard Components7

Структурная целостность: The Instrument Panel Frame

The central component supporting the entire control array is the Instrument Panel Welding Assembly (Часть №. 5310030-Б27). This is the rigid metal or composite framework of the dashboard, crucial for isolating sensitive electronics and instruments from the severe vibration and shock loads of the CA3250 dump truck. The “Welding Assembly” designation indicates that this is a pre-fabricated, high-strength structure. The robust design of the Instrument Panel Welding Assembly is key to preventing panel rattles and ensuring the long-term reliability of all mounted Российские компоненты приборной панели FAW.

The structural rigidity provided by the Instrument Panel Welding Assembly имеет решающее значение для безопасности. В случае столкновения, this frame prevents the dashboard from collapsing onto the driver’s legs or chest. Более того, it ensures that the steering column remains correctly aligned with the driver’s body. The specific metal alloys used in the Instrument Panel Welding Assembly are selected for their low-temperature fracture toughness, resisting brittle failure in the extreme cold of the Russian Arctic, making it a foundation for all other Российские компоненты приборной панели FAW.

Монтаж Instrument Panel Welding Assembly to the cab structure utilizes numerous secure points to distribute stress evenly. This fixation is essential to prevent relative movement between the frame and the firewall, which could otherwise shear electrical wires or fatigue metal mounts. Maintaining the structural integrity of the Российские компоненты приборной панели FAW starts with ensuring the rigid anchoring of the main frame. Proper fastening guarantees the stability required for precise control operation and legible instrument display.

Storage and Ergonomics: Central Box Design

The Central Storage Box (Часть №. 5310041-Б27) is an important ergonomic element of the Российские компоненты приборной панели FAW. В большегрузном грузовике, accessible storage is critical for keeping communication equipment, документы, and personal safety gear organized and readily available. The **Central Storage Box** is molded from a high-impact polymer that resists cracking in the cold. Its design ensures that the lid or drawer mechanism remains functional even when the interior is dusty or subjected to wide temperature swings.

Securing this storage unit is the Central Drawer Fixing Bracket Assembly (Часть №. 5310085-Б27). This bracket provides the necessary rigidity, anchoring the Central Storage Box directly to the steel structure of the Instrument Panel Welding Assembly. Without this rigid support, the storage box would rattle and potentially fail under the constant dynamic loads of the dump truck’s operation. The bracket is specifically designed to absorb minor impacts without transferring stress to the polymer housing, protecting the **Central Storage Box** contents.

The positioning of the Central Storage Box в рамках Российские компоненты приборной панели FAW cluster is optimized for easy, intuitive access by the driver without obscuring the visibility of the road or the main instrument cluster. The low profile of the Central Drawer Fixing Bracket Assembly ensures maximum knee clearance for the driver, enhancing cabin ergonomics. The entire system is engineered for utility, providing a secure place for essential items that might otherwise become loose hazards during rough driving.

HVAC Integration: Air Duct Connections

The proper functioning of the climate control system depends on the interface provided by the Air Duct Connection Bracket (Часть №. 5310043-Б27). This component ensures a secure, leak-proof junction between the dashboard structure and the main air delivery conduits from the HVAC unit. В Российские компоненты приборной панели FAW сборка, the tight seal provided by the Air Duct Connection Bracket is paramount for thermal efficiency. Any air leak at this point allows conditioned air to escape, compromising the defrost performance and cab heating, which are non-negotiable safety requirements in the Arctic.

The Air Duct Connection Bracket is precision-molded to match the complex profile of the air ducting. Its structural design minimizes vibration transmission to the ducts, preventing the development of air-flow noise that can contribute to driver fatigue. The material specification ensures it remains dimensionally stable under the wide thermal cycling of the dashboard structure. This stability guarantees that the seal remains effective, even as the plastic panels of the Российские компоненты приборной панели FAW expand and contract in response to heater usage.

The secure fastening of the Air Duct Connection Bracket to the main Instrument Panel Welding Assembly is achieved through specialized screws. This ensures that the bracket maintains its position and clamping force, preventing the air duct from working loose. A loose air duct can result in the entire airflow being diverted away from the driver’s vents or the windshield, causing immediate visibility issues. Целостность Российские компоненты приборной панели FAW relies heavily on the rigid, sealed connections provided by this bracket.

Fastening Technology and Vibration Isolation

The cohesion of the Российские компоненты приборной панели FAW is maintained by eleven units of the Cross Recessed Pan Head Self-Tapping Screw and Flat Washer Combination (Часть №. CQ2214216F6). The self-tapping design creates a highly rigid, zero-clearance thread connection within the dashboard’s plastic and underlying metal structures. This tight fit is essential for preventing the chronic rattling and squeaking noises that often plague truck cabs operating on rough mining roads, ensuring the operator maintains focus without acoustic distraction.

The “Комбинация” особенность, which integrates a captive flat washer, is crucial for protecting the plastic housing of the Central Storage Box and the main dash structure. The washer distributes the clamping load of the screw over a wider area. This prevents the screw head from cracking the mounting bosses when the required torque is applied, preserving the long-term structural integrity of the Российские компоненты приборной панели FAW. The **Cross Recessed Pan Head Self-Tapping Screw and Flat Washer Combination** ensures both rigidity and material protection.

Более того, а “F6” suffix on the Cross Recessed Pan Head Self-Tapping Screw and Flat Washer Combination denotes a superior anti-corrosion coating. While inside the cab, the fasteners are still susceptible to moisture from condensation caused by heating the cab from freezing temperatures. This coating prevents the screws from seizing in the mounting points, обеспечение Российские компоненты приборной панели FAW can be easily disassembled for HVAC or electrical maintenance without stripping the hardware.

The secure fastening provided by this specialized screw is vital for maintaining the alignment of components like the Central Drawer Fixing Bracket Assembly и Air Duct Connection Bracket. Even minor misalignment due to loose fasteners can lead to binding or air leaks. By relying on the designed torque specifications of the **Cross Recessed Pan Head Self-Tapping Screw and Flat Washer Combination**, fleet maintenance teams guarantee the continued operational smoothness and rigidity of the entire dashboard system.

Заключение: The Nerve Center of the Arctic Truck

The Российские компоненты приборной панели FAW assembly is the nerve center of the CA3250 dump truck’s operational effectiveness. Its robustness is derived from the high-strength Instrument Panel Welding Assembly and the meticulous fastening provided by the **Cross Recessed Pan Head Self-Tapping Screw and Flat Washer Combination**. The accurate positioning of the Air Duct Connection Bracket and the ergonomic design of the Central Storage Box work together to ensure the driver has a stable, комфортный, and controlled workspace.

Для операторов автопарка, the long-term reliability of the Российские компоненты приборной панели FAW translates directly into enhanced driver safety and reduced maintenance costs. Using genuine parts for the Central Drawer Fixing Bracket Assembly and all other structural elements ensures the dashboard remains rattle-free and structurally sound for the life of the vehicle. This commitment to quality guarantees that the operator can always rely on their controls and instruments, allowing them to focus entirely on the demanding conditions of the Russian North.
