| Announcement Model: | CA2151P2K2T5A70E4 | type: | Truck |
| Drive type: | 4X4 | Wheelbase: | 4500mm |
| engine: | Xichai CA6DL1B-26E4 | Gearbox: | Fast RTO-11509F |
| Rear axle ratio: | 6.723 | Body length: | 7.81 m |
| Body width: | 2.5 m | Ride height: | 3.325 m |
| Front track: | 2000mm | Rear track: | 2000mm |
| Vehicle weight: | 8.85 tons | Rated load: | 6.02 tons |
| Total mass: | 15 tons | Maximum speed: | 93KM/h |
| Origin: | Changchun, Jilin | Tonnage level: | Heavy trucks |
| driver license: | A1,A2,B2 | Fuel Type: | diesel fuel |
| Engine parameters | |||
| engine model: | Xichai CA6DL1B-26E4 | Engine Brand: | Xichai |
| Engine common name: | Xichai 8L | Number of cylinders: | 6 cylinders |
| Fuel type: | diesel fuel | Cylinder arrangement: | series |
| Displacement: | 7.7L | Emission Standards: | National Four |
| Maximum output power: | 203kw | Maximum horsepower: | 260 hp |
| Maximum Torque: | 1050N路m | Maximum torque speed: | 1300-1700RPM |
| Rated speed: | 2300RPM | Engine Type: | 6-cylinder in-line, direct injection, turbocharged intercooler, electronically controlled common rail |
| Cargo box parameters | |||
| Cargo box form: | Poncho | Length of cargo box: | 4.6 m |
| Cargo box width: | 2.3 m | Cargo box height: | 0.55m |
| Cab parameters | |||
| Cab: | Flat Top | Number of passengers allowed: | 3 people |
| Number of Seat Rows: | Half row | ||
| Gearbox parameters | |||
| Gearbox Model: | Fast RTO-11509F | Gearbox brand: | Fast |
| Shifting method: | Manual | Forward gears: | 9 gears |
| Number of downs: | 1 | ||
| Chassis parameters | |||
| Permissible load on front axle: | 6000KG | Permissible load on rear axle: | 9000KG |
| Speed atio: | 6.723 | Number of springs: | 9/9+12 |
| tire | |||
| Tire specifications: | 1200X500-508 | Number of tires: | 6 |
| Announcement Model: | CA2191P2K2TA70E3 | type: | Truck |
| Drive type: | 6X6 | Wheelbase: | 3800+1400mm |
| engine: | Xichai CA6DL1-29E3 | Gearbox: | Fast RT011509F |
| Rear axle ratio: | 6.723 | Body length: | 8.37 m |
| Body width: | 2.5 m | Ride height: | 3.325 m |
| Front track: | 2000mm | Rear track: | 2000/2000mm |
| Vehicle weight: | 10.8 tons | Rated load: | 8.07 tons |
| Total mass: | 19 tons | Origin: | Changchun |
| Tonnage level: | Heavy trucks | driver license: | A1,A2,B2 |
| Market segments: | Construction materials transportation, agricultural and sideline products transportation | Fuel Type: | diesel fuel |
| Engine parameters | |||
| engine model: | Xichai CA6DL1-29E3 | Engine Brand: | Xichai |
| Engine common name: | Xichai 8L | Number of cylinders: | 6 cylinders |
| Fuel type: | diesel fuel | Cylinder arrangement: | Inline |
| Displacement: | 7.7L | Emission Standards: | National Three |
| Maximum output power: | 213kw | Maximum horsepower: | 290 hp |
| Maximum Torque: | 1150N路m | Maximum torque speed: | 1300-1700RPM |
| Rated speed: | 2300RPM | Engine Type: | In-line, electronic control, common rail, supercharged, air-to-air intercooling |
| Cargo box parameters | |||
| Cargo box form: | Fence type | Length of cargo box: | 5.3 m |
| Cargo box width: | 2.3 m | Cargo box height: | 0.55m |
| Cab parameters | |||
| Cab: | Flat head cab | Number of passengers allowed: | 3 people |
| Number of Seat Rows: | Half row | ||
| Gearbox parameters | |||
| Gearbox Model: | Fast RT011509F | Gearbox brand: | Fast |
| Shifting method: | Manual | Forward gears: | 9 gears |
| Reverse gear number: | 1 | ||
| Chassis parameters | |||
| Rear Axle Description: | Oe Bridge | Speed atio: | 6.723 |
| Number of springs: | 9月10日 | ||
| tire | |||
| Tire specifications: | 12.00X500-508 | Number of tires: | 6 |
| Announcement Model: | CA5312CLXYP21K2L2T4E | type: | Saddle Truck |
| Drive type: | 8X4 | Wheelbase: | 2000+4700+1350mm |
| engine: | Dachai BF6M1013-28E3 | Gearbox: | FAW Jiefang CA10TA190M |
| Rear axle ratio: | 4.111 | Body length: | 11.99 m |
| Body width: | 2.5 m | Ride height: | 3.98 m |
| Front track: | 2020/2020mm | Rear track: | 1830/1830mm |
| Vehicle weight: | 13.73 tons | Rated load: | 16.98 tons |
| Total mass: | 30.9 tons | Maximum speed: | 75KM/h |
| Origin: | Changchun | Tonnage level: | Heavy trucks |
| driver license: | A1,A2,B2 | Market segments: | Agricultural and sideline products transportation, LTL transportation, Green Pass, daily industrial products transportation |
| Remark: | Engine net power value: CA6DL1-32E3 is 228kw, CA6DL2-35E3 is 258kW; VIN correspondence: LFNFVXNX corresponds to CA6DL1-32E3 engine, LFNFVXPX corresponds to CA6DL2-35E3 engine; optional flat-top cab and new high-top cab, front overhang/rear overhang (mm): 1418/2222, 1418/2922, 1418/2522, overall dimensions length × width × height (mm): 11990, 11290 × 2490 × 3980, 3780, 3580, cargo compartment railing length × width × height (mm): 8800, 9500 × 2300 × 800, 600, cargo compartment railing length × width × height (mm): 8800, 9500 × 2300 ×800,600,Front overhang/rear overhang(mm): 1418/2222,1418/2922,1418/2522 | Version: | Lightweight version |
| Fuel Type: | diesel fuel | ||
| Engine parameters | |||
| engine model: | Dachai BF6M1013-28E3 | Engine Brand: | Dachai |
| Engine common name: | Dachai 7.2L | Number of cylinders: | 6 cylinders |
| Fuel type: | diesel fuel | Cylinder arrangement: | Inline |
| Displacement: | 7.14L | Emission Standards: | National Three |
| Maximum output power: | 206kw | Maximum horsepower: | 280 hp |
| Maximum Torque: | 1050N路m | Maximum torque speed: | 1100-1400RPM |
| Rated speed: | 2300RPM | Engine Type: | 6-cylinder in-line, direct injection, supercharged intercooler, electronically controlled unit pump |
| Cargo box parameters | |||
| Cargo box form: | Barn type | Length of cargo box: | 8.8 m |
| Cargo box width: | 2.3 m | Cargo box height: | 0.8m |
| Cab parameters | |||
| Cab: | High Top | Number of passengers allowed: | 3 people |
| Number of Seat Rows: | Half row | ||
| Gearbox parameters | |||
| Gearbox Model: | FAW Jiefang CA10TA190M | Gearbox brand: | FAW Jiefang |
| Shifting method: | Manual | Forward gears: | 10 levels |
| Reverse gear number: | 2 | ||
| tank | |||

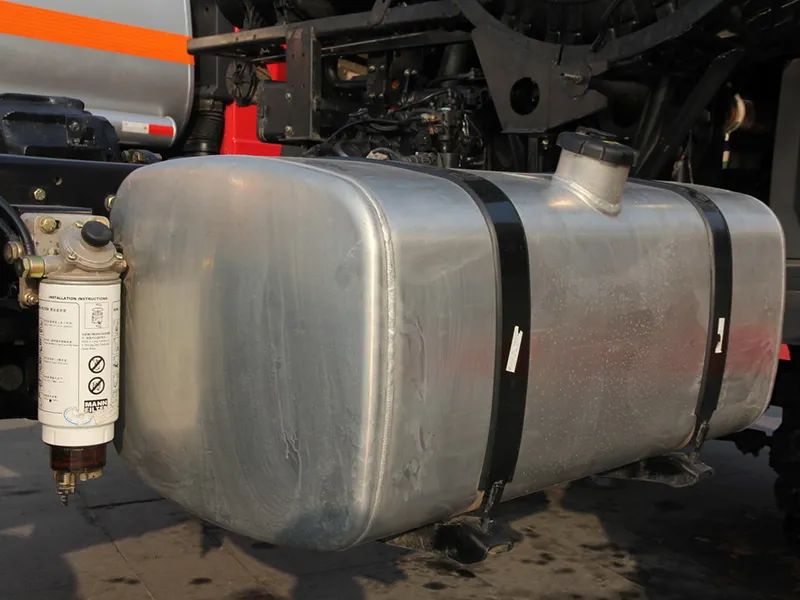

| Fuel tank material: | Aluminum Alloy | Fuel tank capacity: | 400L |
| Chassis parameters | |||
| Permissible load on front axle: | 6500KG | Permissible load on rear axle: | 17900KG |
| Speed atio: | 4.111 | Number of springs: | 9月12日 |
| tire | |||
| Tire specifications: | 11.00-20 11.00R20 12.00-20 12.00R20 | Number of tires: | |
When it comes to shipping the heavy-duty Faw J5p, there are several options available, including Ro-Ro shipping, Frame & Container shipping, and Bulk shipping. Here is a breakdown of each shipping method:
By Ro-Ro
Ro-Ro shipping involves a Roll-on Roll-off vessel, where the truck is driven onto the ship and then secured for transport. This method is ideal for shipping a single unit or a small number of vehicles. It is a cost-effective and efficient method, as the vehicle is loaded and unloaded quickly.
By Frame & Container
This shipping method involves disassembling the truck and packaging it into frames or containers. It is a suitable option when transporting multiple Faw J5p, as it allows for easy stacking and handling. This shipping method is more secure than Ro-Ro shipping, as the truck is disassembled and packed carefully.
By Bulk
Bulk shipping is an excellent option when transporting a significant number of JH6 Faw. The vehicles are loaded onto a carrier vessel and secured by straps or chains. This shipping method is ideal for businesses with large-scale transportation needs as it is cost-effective and efficient.
Conclusion
In conclusion, there are various shipping methods available for transporting the Faw J5p , and the best option depends on the number of vehicles being shipped and the destination. Whether it is Ro-Ro, Frame & Container, or Bulk shipping, each method has its advantages and disadvantages, and it is essential to consider all aspects before settling on a particular option.
