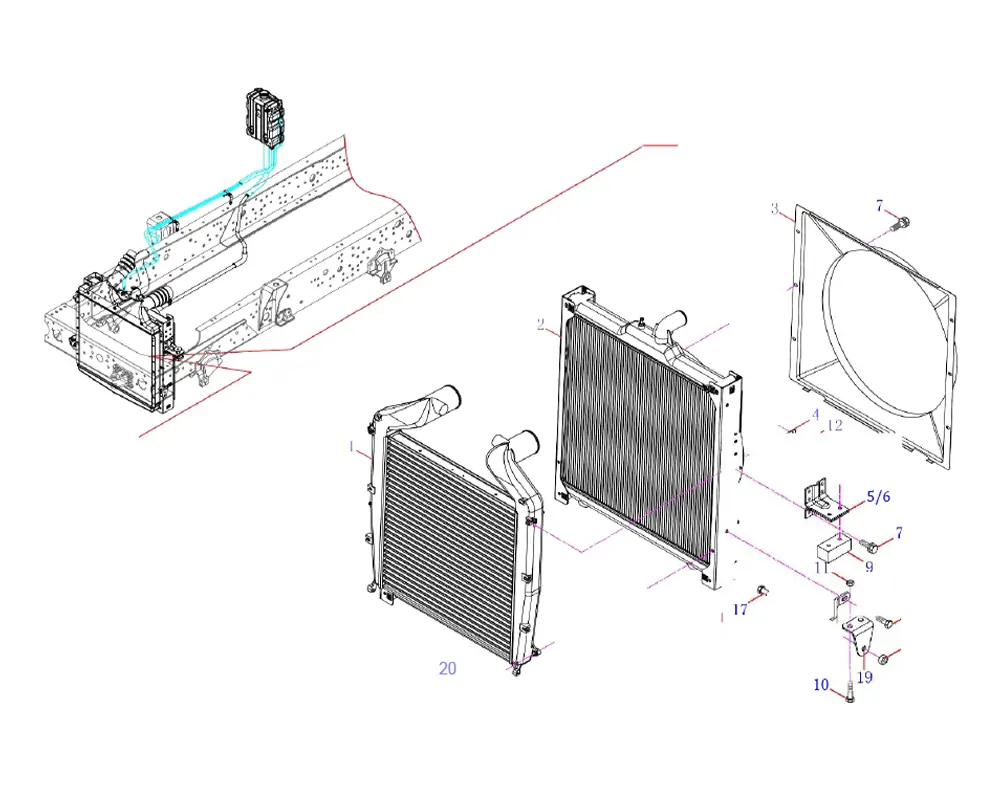

Upgrade your FAW J5 Truck with our state-of-the-art Cooling System Module Assembly, meticulously engineered to ensure optimal cooling performance under all operating conditions.
At the core of our Cooling System Module Assembly is the Intercooler Assembly (Part No. 1119010-DF003) and Radiator Assembly (Part No. 1301010-DE003B), designed to efficiently reduce the engine’s temperature, enhancing its performance and longevity. The system is further augmented by the Fan Wind Shield Assembly (Part No. 1309010-DS086Z), ensuring effective air flow and cooling efficiency.
Supporting components such as the On Cooler Bracket (Part No. 1119021-DG001A), LH and RH Radiator Suspension Brackets (Part Nos. 1302010-D488 & 1302015-D488), and Radiator Suspension Backing Block Assy (Part No. 1302030-D488) provide a sturdy and reliable framework, ensuring the assembly remains securely in place even under harsh driving conditions.
Our assembly includes a comprehensive selection of Assembling Bolts (Part Nos. CQ1460816, CQ1460820, CQ1461230, CQ1461025, CQ1461050, CQ1460825, CQ1420820), Heavy Hexagons (Part Nos. CQ34012, CQ34010, CQ34008), and other mounting accessories like the Draw Plate Lower Bracket Assembly (Part No. 1302905-D229), Link Cushion Assembly (Part No. 1302050-01), and Plastic Fastening Straps (Part Nos. T67427946, T67414646), ensuring a seamless and vibration-free installation.
The Cooling System Module Assembly features the Plastic Expansion Tank Assembly (Part No. 1311010-Q204) and associated components like the Water Return Pipe (Front) (Part No. 1311032-DA01), Engine Degassing Pipe Assys (Part Nos. 1311025-138, 1311026-362), and a variety of Rubber Pipes (Part Nos. 1311023-Q408, 1311046-DG082A, 1311023-Q422, 1311023-8E) for efficient coolant circulation and degassing.
Ensuring a leak-free system, our assembly is equipped with Worm Drive Type Hose Clamps (Part Nos. CQ67516, CQ67535B, CQ67670B, CQ67680B), providing a tight and secure fit for all connected components.
Additionally, the Cooling System Module Assembly incorporates various brackets (Part Nos. 1311040A242, 1311029-D453, 1311040-Q417, 1311045A263), Clamps (Part Nos. 1311060-8E, Q68622, 3506045-D481), and additional securing elements like the Rubber Protection Ring (Part No. 3506033-X141) and Pipe Clip Assemblies, ensuring durability and reliability.
Optimize your FAW J5 Truck’s performance with our Cooling System Module Assembly, designed for efficiency, durability, and ease of installation, keeping your engine cool and your drives smooth.
| S/N | Part number | Part name | Qty. |
| 1 | 1119010-DF003 | Intercooler Assembly | 1 |
| 2 | 1301010-DE003B | Radiator Assembly | 1 |
| 3 | 1309010-DS086Z | Fan Wind Shield Assembly | 1 |
| 4 | 1119021-DG001A | On Cooler Bracket | 2 |
| 5 | 1302010-D488 | LH Bracket -Radiator Suspension | 1 |
| 6 | 1302015-D488 | RH Bracket -Radiator Suspension | 1 |
| 7 | CQ1460816 | Assembling Bolt | 16 |
| 8 | CQ1460820 | Assembling Bolt | 23 |
| 9 | 1302030-D488 | Radiator Suspension Backing Block Assy | 2 |
| 10 | CQ1461230 | Assembling Bolt | 4 |
| 11 | CQ34012 | Heavy Hexagon | 4 |
| 12 | CQ1461025 | Assembling Bolt | 8 |
| 13 | 1302905-D229 | Draw Plate Lower Bracket Assembly | 2 |
| 14 | 1302020-D229 | Draw Plate-Radiator | 2 |
| 15 | 1302050-01 | Link Cushion Assembly | 2 |
| 16 | 1302052-01 | Washer | 2 |
| 17 | CQ1461050 | Assembling Bolt | 2 |
| 18 | CQ34010 | Heavy Hexagon | 2 |
| 19 | 1302017-D229 | Draw Plate Lower Bracket | 2 |
| 20 | CQ1460825 | Assembling Bolt | 2 |
| 21 | T67427946 | Plastic Fastening Strap | 2 |
| 22 | T67414646 | Plastic Fastening Strap | 4 |
| 23 | CQ34008 | Heavy Hexagon | 8 |
| 24 | 1311040A242 | Expansion Tank Fixing Bracket Assembly | 1 |
| 25 | 1311032-DA01 | Water Return Pipe（Front） | 1 |
| 26 | 3406442A382 | Insulation Pipe | 1 |
| 27 | 1311010-Q204 | Plastic Expansion Tank Assembly | 1 |
| 28 | CQ67516 | Worm Drive Type Hose Clamp | 8 |
| 29 | CQ67535B | Heavy-duty Worm Drive Type Hose Clamp | 6 |
| 30 | CQ1420820 | Assembling Bolt | 4 |
| 31 | Q40108 | Washer | 3 |
| 32 | 1311023-Q408 | Rear Degassing Rubber Pipe | 2 |
| 33 | 1311060-8E | Double Pipe Clamp Assembly | 2 |
| 34 | Q68622 | Single Pipe Clip | 2 |
| 35 | 1311029-D453 | Bracket | 2 |
| 36 | 1311040-Q417 | Rear Water Return Connecting Steel Pipe Assy | 1 |
| 37 | 1311045A263 | Front Water Return Connecting Steel Pipe Assy | 1 |
| 38 | 1311043A263 | Middle Rubber Pipe | 1 |
| 39 | 1311046-DG082A | Front Water Return Rubber Pipe | 1 |
| 40 | 1311025-138 | Engine Degassing Pipe Assy | 1 |
| 41 | 1311024-249 | Degassing Hollow Bolt | 1 |
| 42 | CQ72314T5 | Washer | 2 |
| 43 | 1311026-362 | Engine Degassing Pipe | 2 |
| 44 | 1311023-Q422 | Radiator Front Degassing Rubber Pipe | 1 |
| 45 | 1311023-8E | Rear Degassing Rubber Pipe | 1 |
| 46 | 1311036-Q413 | Joint Of Water Return Pipe | 1 |
| 47 | 1303021-Q413 | Radiator Water Outlet Rubber Pipe | 1 |
| 48 | 1303011A-Q413 | Radiator Water Inlet Rubber Pipe | 1 |
| 49 | CQ67670B | Worm Drive Type Hose Clamp Type B | 3 |
| 50 | CQ67680B | Worm Drive Type Hose Clamp Type B | 1 |
| 51 | 3506056-8K9 | Clip | 1 |
| 52 | 3506033-X141 | Rubber Protection Ring | 1 |
| 53 | CQ34012 | Heavy Hexagon | 3 |
| 54 | Q40312 | Spring Washer | 3 |
| 55 | CQ1501230 | Hexagon Head Bolt | 3 |
| 56 | 3506045-D481 | Pipe Clip Assembly | 1 |
